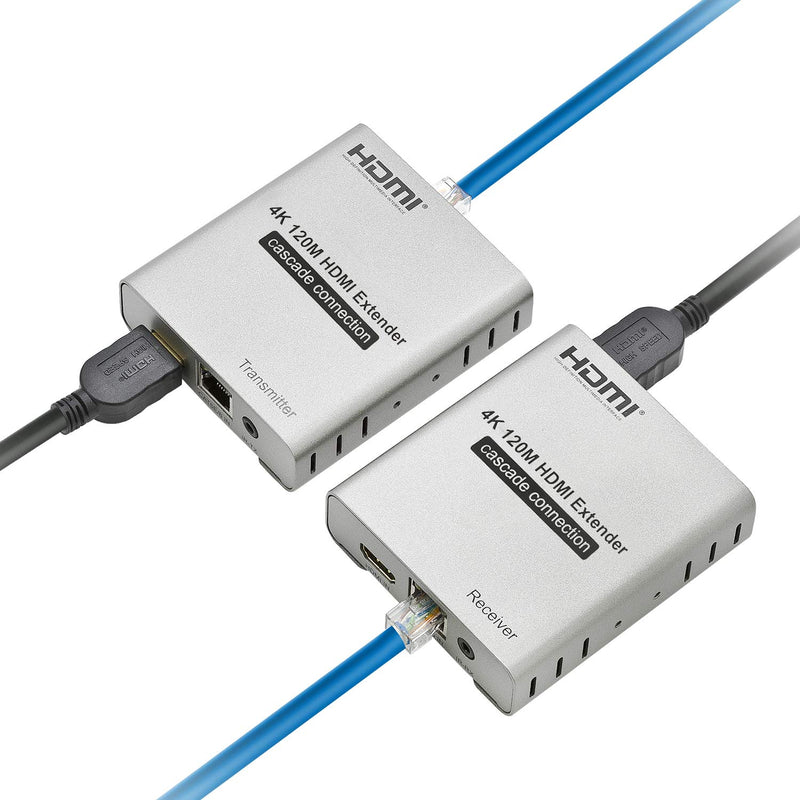

Expert Connect ET4K120M 4K@30Hz HDMI 1.4 Extender Over Cat5e/Cat6/Cat7 – 400 Ft (120 M), HDCP 1.4 With Loop-Out, IR Pass-Through & Cascading Support

[Long-Range 4K & 1080p Extension] Transmit uncompressed 4K@30Hz or Full HD 1080p video up to 400 ft (122 m) using a single Cat5e/Cat6/Cat7 cable—no repeaters needed. Supports a wide range of resolutions including 4K@30Hz, 1080p, 720p, 576p, and 480p. Perfect for digital signage, lecture halls, conference rooms, and home theater systems., [HDMI Loop-Out for Local Monitoring] Equipped with an HDMI loop-out port on the transmitter, the ET4K120M lets you view content locally while simultaneously transmitting to a remote display. This is perfect for setups where the source location requires real-time monitoring—such as control rooms, broadcasting booths, or video conferences—without needing a separate splitter., [IR Pass-Through for Remote Device Control] Includes IR-TX and IR-RX cables that support one-way IR control from the display end to the source device (20–60 kHz), enabling you to operate Blu-ray players, set-top boxes, or streaming devices remotely—without extra IR hardware., [Cascading Support for Multi-Display Expansion] HDMI loop-out allows daisy-chaining to multiple receivers, enabling one HDMI source to power multiple screens in series. Ideal for video walls, retail displays, and large-scale broadcast environments that require synchronized output., [Rugged Design with Surge Protection] Encased in heat-dissipating metal housings with shielded HDMI and RJ45 ports. Built-in 8 kV ESD surge protection and an isolation transformer defend against electrical spikes and interference. LED indicators provide clear status for power and signal integrity.

Brand: Expert Connect
Cable: HDMI; Ethernet (Cat5e/Cat6/Cat7)
Color: Black
Compatible Devices: Laptop, Television, Projector, Playstation, Monitor
Compatible Phone Models: No Compatible Phone Models
Connector Gender: Male-To-Male
Connector Type: HDMI, RJ45
Frequency: 60 Hertz
Included Components: Transmitter & Receiver, IR Cables, 2× 5V Power Adapters, Manual
Indoor Outdoor Usage: Outdoor, Indoor
Item Package Dimensions: Length 12.7 Centimeters, Width 28.194 Centimeters, Height 36.093 Centimeters
Item Package Weight: 2.511 Pounds
Item Shape: Flat
Item Weight: 1.5 Pounds
Manufacturer: Expert Connect
Material: Metal
Maximum Current: 1 Amps
Maximum Voltage: 5 Volts Of Direct Current
Model Number: ET4K120M
Number Of Pins: 19
Pattern: Compact Metal Housing With LED Status Indicators
Recommended Uses For Product: Conference Rooms; Classrooms; Home Theaters; Digital Signage; Security Surveillance
Size: 4K@30Hz – 400 Ft
Special Feature: Long Distance Transmission
Specification Met: CE
Unspsc Code: 43202222
Voltage: 5 Volts
Wattage: 5 Watts
